11.10 Text dialog

Use this dialog to create your text objects. The dialog consists of three pages.

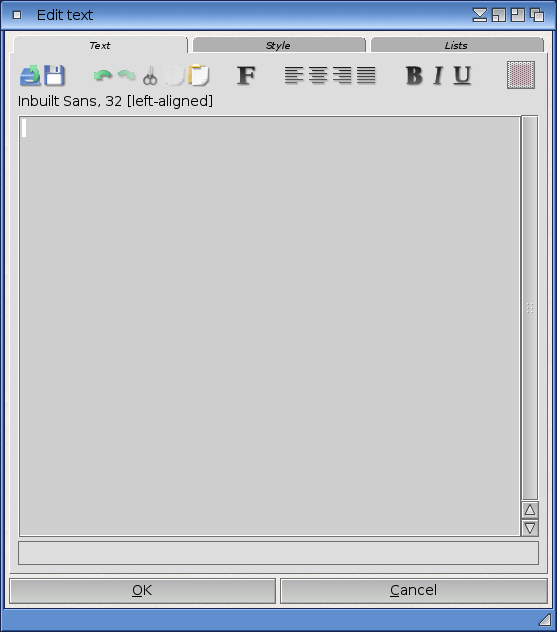

a) Text

The first page contains the text editor, a toolbar, and a status line which explains the toolbar functions if the mouse is over a toolbar icon. Additionally, there is an info bar which shows the currently selected font face as well as the font size and the alignment. Possible alignments are: left, right, center, and justified.

In the text editor you can enter the text of your object. You can also import this text from an external file by clicking on the folder icon in the toolbar. Additionally, you can save the contents of the text editor if you click on the disk icon.

The toolbar offers the following functions (from left to right):

Insert file
Inserts a file in the editor. If you prefer to use your favorite text editor for writing your text, you can import it easily using this button. The text to be imported must be in UTF-8 format.

Save text
Saves the contents of the text editor to a file in UTF-8 encoding.

Undoes the last entry.

Redoes the last undone operation.

If you marked some text, you can use this button to cut it and place it in the clipboard from where you can import it for example in your favorite text editor.

Copies the marked text to the clipboard.

Inserts the text from the clipboard into the text editor.

Change font
Click this button to pop up a font requester which you can use to select a new font face.

Left align
Click this button, to make the text left aligned. This has only an effect, if your text has more than one line.

Center align
Click this button, to make the text center aligned. This has only an effect, if your text has more than one line.

Right align
Click this button, to make the text right aligned. This has only an effect, if your text has more than one line.

Justified align
Click this button, to make the text justified aligned. This has only an effect, if your text has more than one line.

Bold text
Change the text style to bold. You can also mark some text and change only the marked text to bold.

Italic text
Change the text style to italic. You can also mark some text and change only the marked text to italic.

Underlined text
Change the text style to underlined. You can also mark some text and change only the marked text to underlined.

This widget will be enabled only when you have marked some text. In that case, you can use this widget to change the color of the marked text.

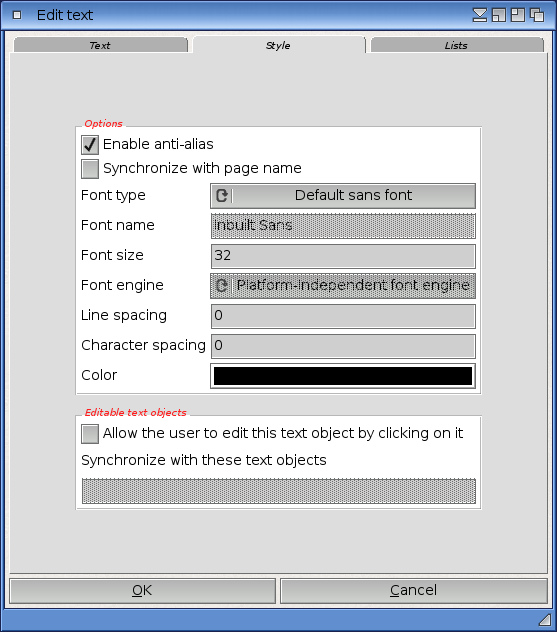

b) Style

On this page you can choose a font for this text object. You will normally do this using the font requester button in the toolbar on the first page, but if you want to use one of Hollywood Designer's inbuilt fonts, you have to configure this font here because it does not appear in the font requester. You can also manually enter font name and font size on this page. This is useful if you are using the platform-independent font renderer which allows you to use fonts that are not actually installed in the operating system. Thus, they will not show up in the font requester. So if you want to use these fonts through the platform independent font renderer, you have to manually enter the font name and font size here, and of course you must activate platform-independent text in the Project properties dialog.

The default fonts of Hollywood Designer are Inbuilt Sans, Inbuilt Serif, Inbuilt Monospace, Inbuilt DejaVu Sans, Inbuilt DejaVu Serif, and Inbuilt DejaVu Monospace. The advantage of these fonts is that they are inbuilt into Hollywood Designer and thus they are available on every system. By using these fonts you also do not have to worry about any licensing fee issues because these fonts can be used without any royalty obligations and they will look the same on all platforms. Note that the DejaVu fonts aren't inbuilt in Hollywood so you need to enable the "Link all fonts to program" option if you plan to distribute your project with the fonts included. The DejaVu fonts differ from the standard fonts in the way that they have some more characters, especially non-ISO-8859-1 ones so they can be useful when it comes to Eastern European characters and so on.

You can also set the text color and the line spacing on this page. The line spacing value is the number of additional pixels to add when vertically aligning lines. It can also be negative in which case lines are moved closer to each other by the specified number of pixels.

If you select the "Allow the user to edit this text object manually by clicking on it" option, users will be able to permanently change the contents of the text object by clicking on it. The contents of the edited text objects are stored in the location specified in the Project properties dialog. Note that editable text objects need to have a UID and the page they are on also needs to have a UID. Otherwise editable text objects will not work. See User settings for details.

If you activate the "Synchronize with page name" option, the text object's contents will automatically be set as the name of the page it is on. This is useful if you have a text object on your page that acts as some kind of page title or heading and you'd always like to have the contents of this header text object as the page name as well. Just tick this box and Designer will automatically set the page name to the text object's contents.

It is also possible to have Hollywood Designer synchronize the text object's contents with other text objects. If you want that, enter their identifiers together with the identifiers of the pages they are on in the text entry widget below. The page's UID must come first, followed by a colon, followed by the text object's UID. If you want to specify multiple text objects, use a comma as a separator and then repeat the specification, e.g. "PAGE1:OBJ1,PAGE2:OBJ2,PAGE3:OBJ3".

When the text dialog is opened because you have chosen the Change object style action event, you will see some additional options. If you select the "Ignore anchor point" option, the object will keep its exact position when the text is changed. Furthermore, you can set a new wordwrapping boundary when the text dialog in that case.

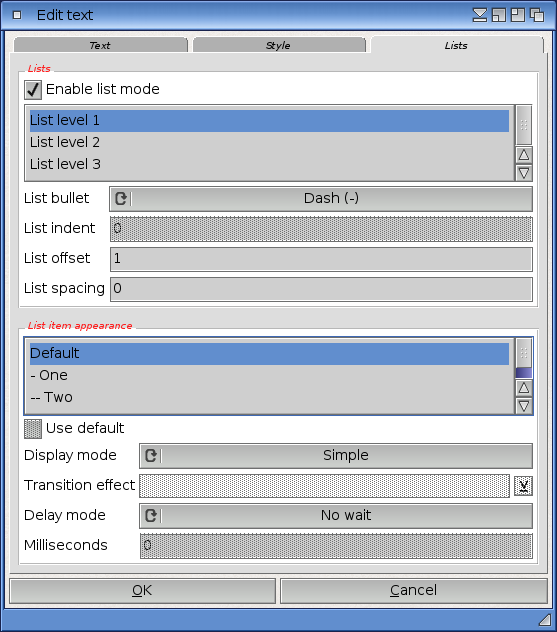

c) Lists

This page allows you to create unordered and ordered lists with Hollywood Designer. If you want to do that, you first have to tick the checkbox named "Enable list mode". Then you have to enter the individual items of the list on the first page of the dialog, one list item per line. Each list item must be started with a dash character. You can start sublists by prefixing list items using multiple dashes. The number of dashes indicate the indentation level, i.e. a single dash indicates the root list level, two dashes indicate the first indentation level, three dashes the second indentation level and so on. For example, this is what a list could look like:

- First item
- Second item
-- First sub item
-- Second sub item
--- First sub sub item
--- Second sub sub item
-- Third sub item
-- Fourth sub item
- Third item

The actual look of the list can be configured by the widgets on the dialog page.

List bullet:
Here you can set the list bullet that should be used. You can choose a different bullet for each indentation level. Note that when using advanced bullets like checkmark symbols etc. you need to make sure that the font you have configured for the text object actually has those characters.

List indent:
Here you can set the desired indentation for the selected list level. The level is specified as a number of spaces, i.e. a value of 4 here means indent the list items by four spaces.

List offset:
If you have chosen an ordered list bullet type like 1, 2, 3 etc. you can set the starting offset for the list here. If this is set to 1, the list will start at 1 (or at "a" or "i" depending on the ordered bullet type selected). In case you want a different starting offset, enter it here.

List spacing:
Here you can set the desired line spacing for the selected list level. Note that there is also a global line spacing option on the first page but this isn't as flexible as the list level-based line spacing on the third page which allows you to set individual line spacings for the individual list levels.

The second listview widget on this page allows you to configure how the individual list items should be shown. You can define a default show mode and individual show modes for the individual items in your list.

To set the default show mode for list items which don't have an individual mode set, select the "Default" entry and then configure the desired show mode using the widgets below. To set an individual show mode for a list entry, select it from the list, untick the "Use default" checkbox and then configure the show mode as you like.

The following options are available here:

Display mode:
This can be used to specify how the list item should be shown. It can be either "Simple" or "Transition effect".

Transition effect:
Here you can set the desired transition effect and speed in case you have set the list item's display mode to "Transition effect".

Delay mode:
Here you can set whether there should be a delay after showing the list item and what kind of delay you'd like to have (wait a certain amount of milliseconds, wait for presenter etc.)

If the delay mode has been set to waiting a number of milliseconds, you must enter this number of milliseconds here.

Special codes

You can also embed Hollywood variables in your text object. You need to use some special sequences then which are explained here:

This sequence embeds the value of the variable "var" in the text object. "var" needs to be an integer or float variable.

This sequence embeds the contents of the variable "var$" in the text object. "var$" must be a string variable.

This sequence embeds a Unicode character in the text. Simply add the codepoint of the Unicode character you want to have after a percent sign (in decimal notation) and it will be inserted into the text. This is useful if you need characters not available in the system's default charset or if you need to embed special characters like zero-width spaces or soft hyphens in the text. For example, you could just write %173 to insert a soft hyphen and %8203 to insert a zero-width space character.

Please note that Hollywood Designer creates all text objects before displaying the page they are on. This means that the values of the variables must be set before Hollywood Designer starts to create your page. For example: If you want to use a variable in a text object on page 2, you already need to set the variable in page 1.
